10 x Fader Digital Mixing Console For Radio

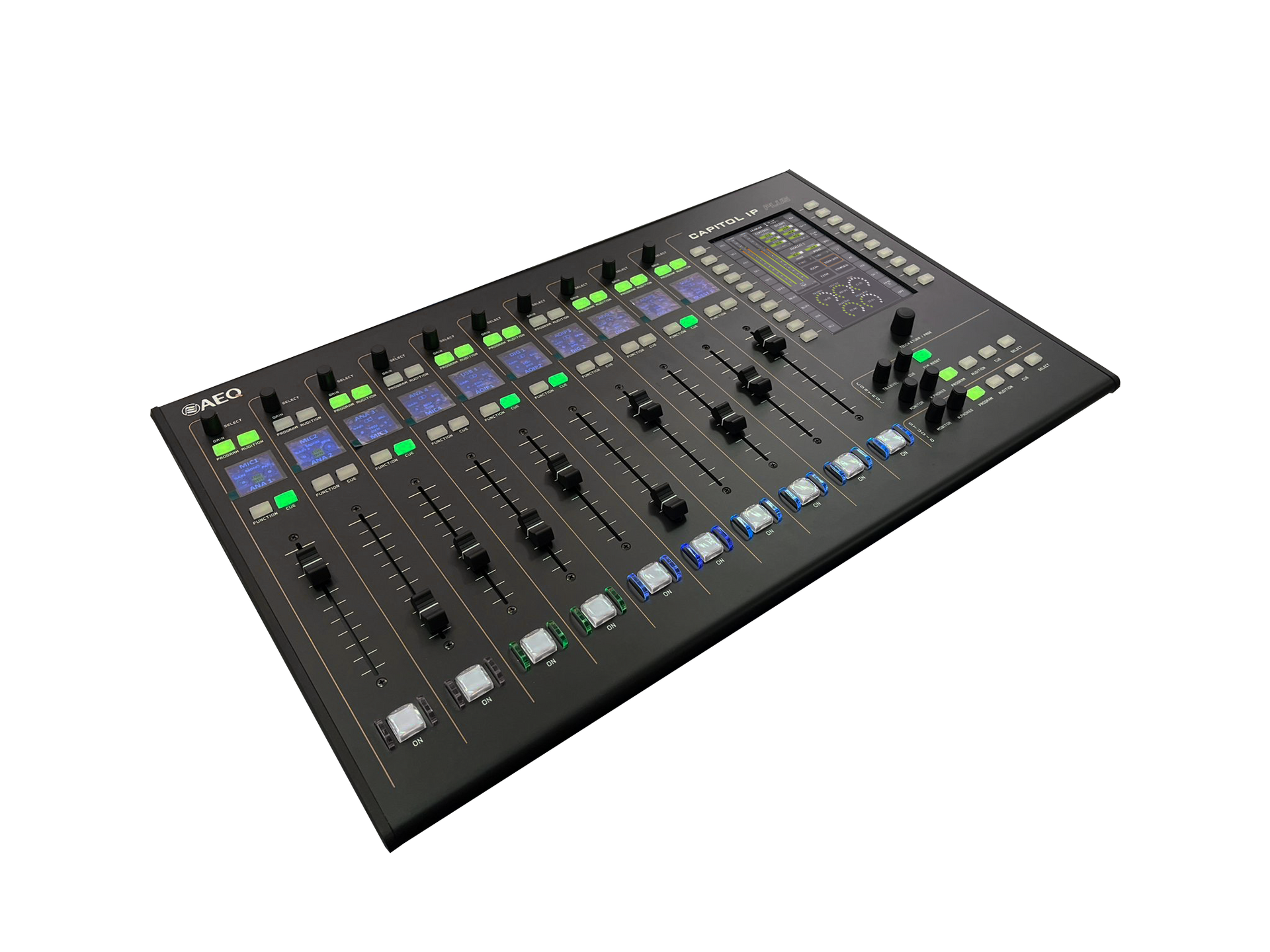

CAPITOL IP PLUS is AEQ's next-generation digital audio broadcast mixing console, purpose-built for ON AIR control while remaining flexible enough to support a wide range of workflows and operational needs. It includes all the essential features expected in a professional broadcast environment, such as automatic monitor muting, cough mute, fader start, control signalling, automation triggers for external equipment, external communications handling, and integrated talkback/intercom functions — plus many additional capabilities.
Fully Loaded Connectivity
- Analog stereo outputs for Control, Studio, CUE and Studio primary Headphone monitoring.
- Output for CUE.
- 5 x mono mic/line inputs with phantom power and electronically balanced microphone inputs.
- 12 x analog inputs (can be configured as individual or stereo pairs).
- 8 x analog outputs (can be configured as individual or stereo pairs).
- 4 AES/EBU digital stereo inputs and 4 AES/EBU digital stereo outputs
that can be configured as SPDIF. - Sampling rate converters for the digital inputs.
- 2 x USB (I/O) digital stereo inputs/outputs.
- 8 x Opto-coupled GPI’s, 8 x opto-coupled GPO’s and 4 x GPO’s with relays.
- Multichannel: 16 x bidirectional channels via internal AoIP module
(AES67 technology, Dante format), with 4 channels reserved for communication with the surface. - Dante up-gradable to 32 x mono (or 16 x stereo) channels.
- Synchronization via AES/EBU and Dante.
Next Gen Radio Console
Packed with features!
Meet the next generation radio mixing console by AEQ.
Key Features
List of Services
-

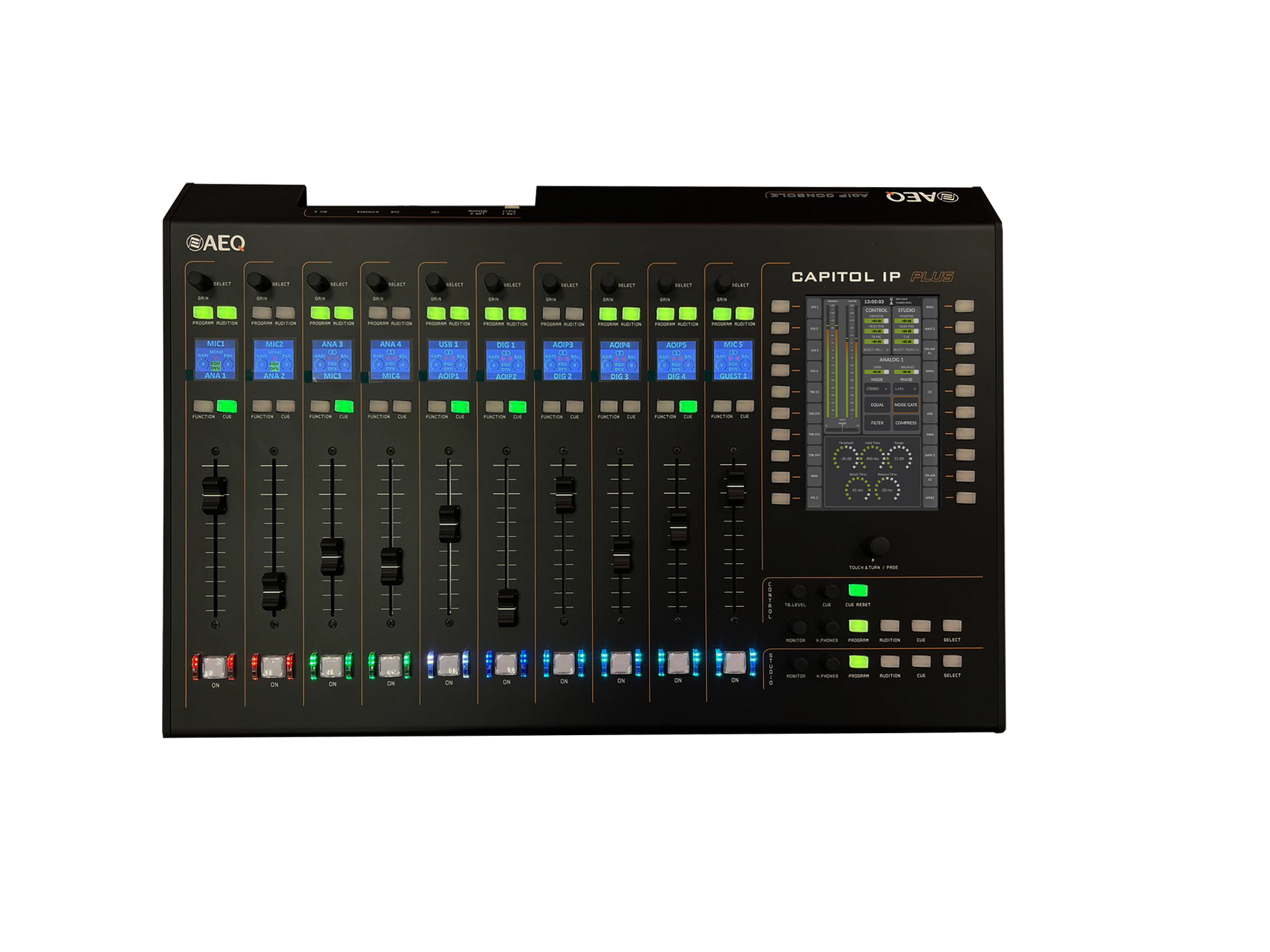

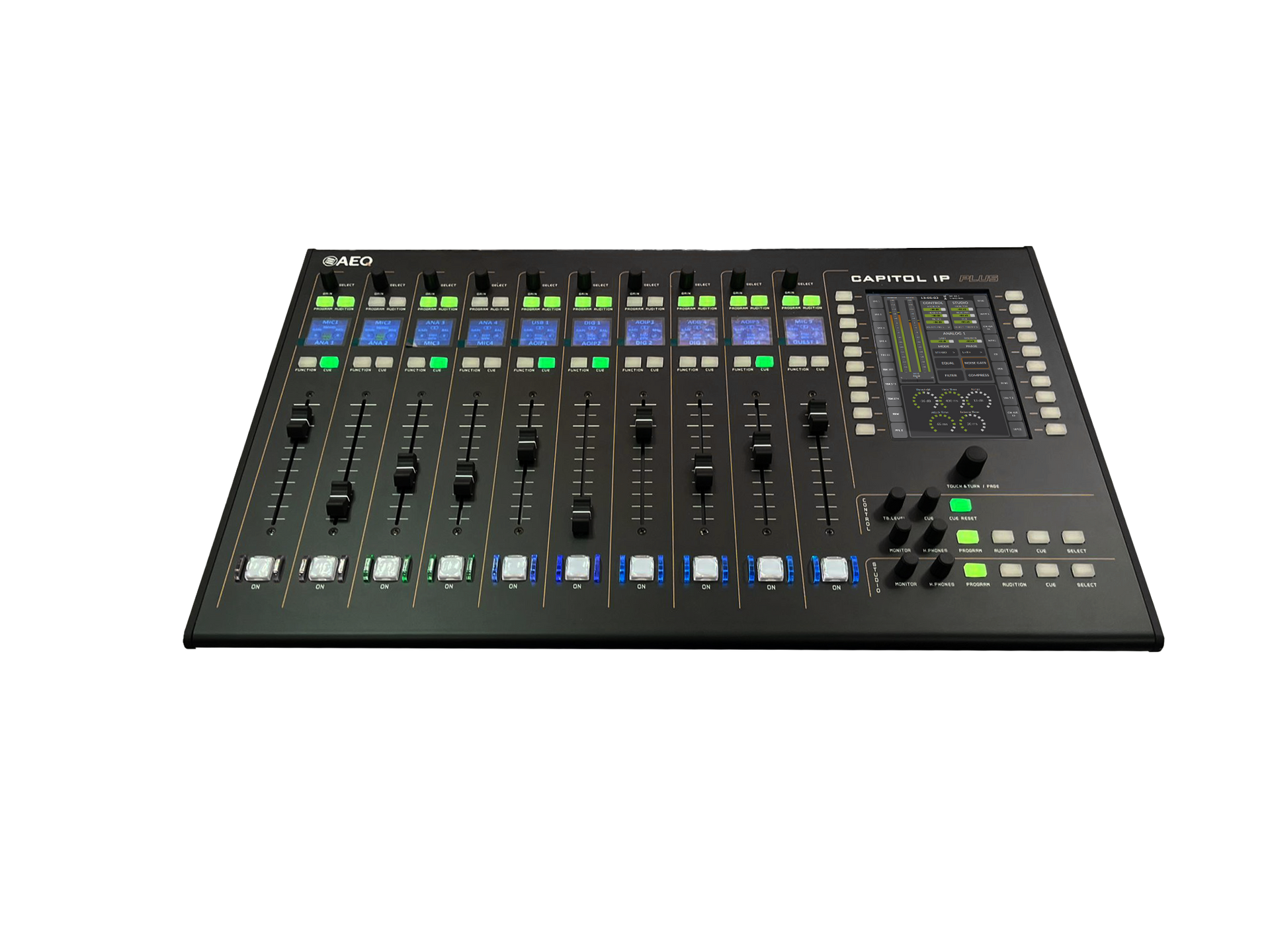

10 x Fader Control SurfaceList Item 1

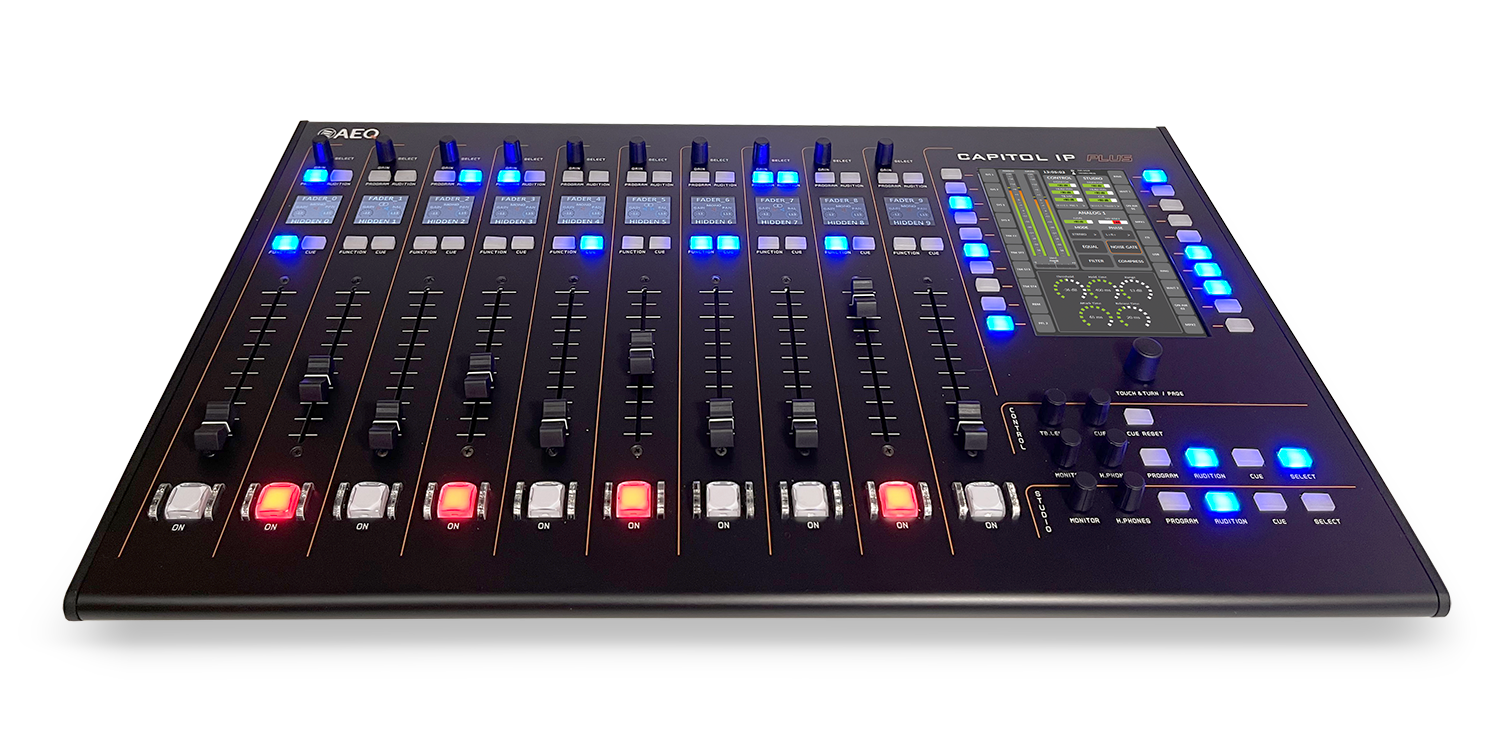

The Capitol Plus features 10 x fully configurable faders which can be assigned to any available source or mix bus.
Each fader includes a full colour display, output bus assignment buttons (Program or Audition), fader starts, on/of buttons, gain control and more.
Layouts can be saved as snap shots and A/B sources can be setup for quick switching between sources.
-

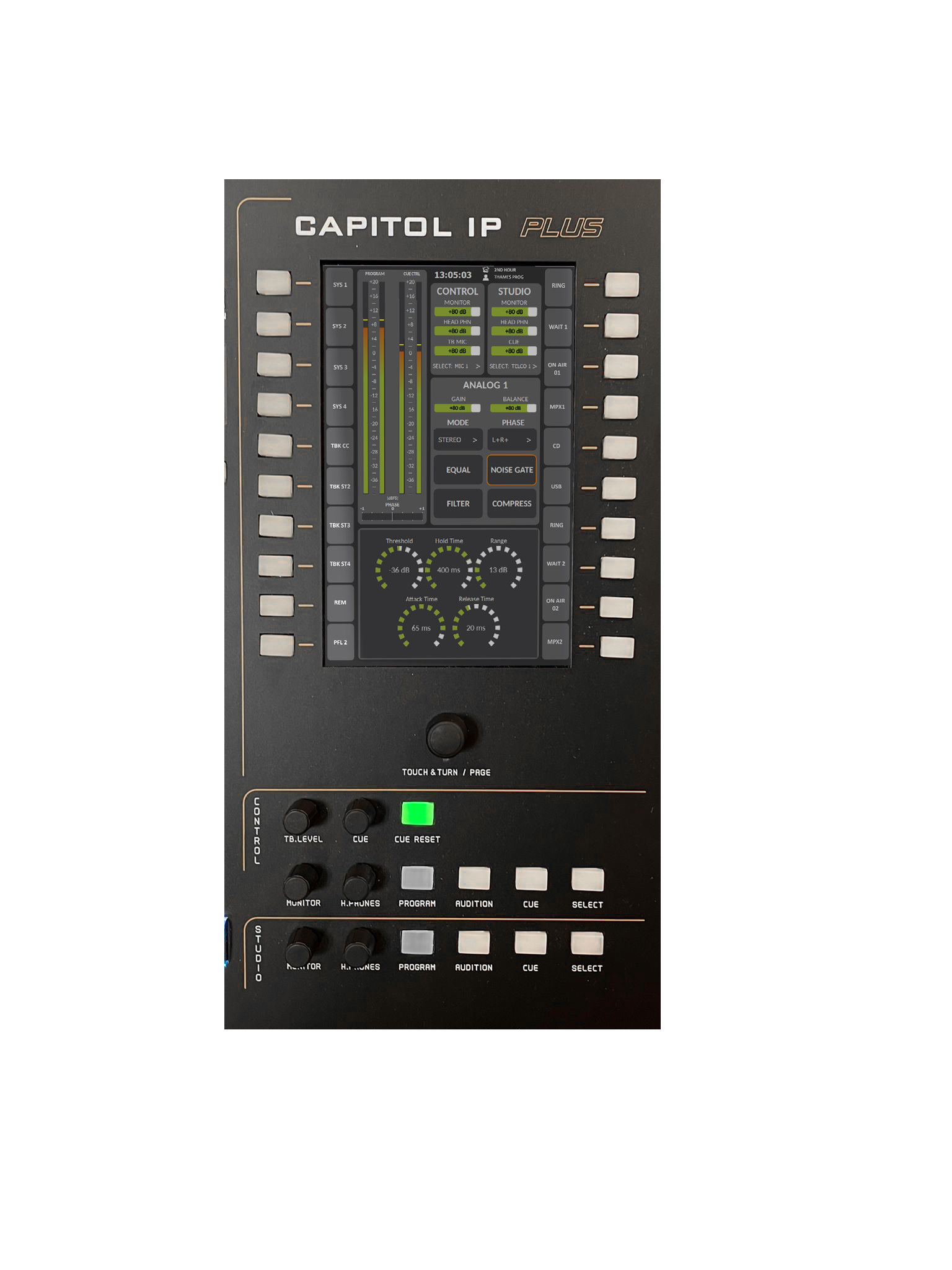

Full Colour TouchscreenList Item 2
The full colour touchscreen allows you to monitor audio leveks and configure your Capitol Plus.
The monitoring section offers independent control for Studio and Control Room monitors and headphones.
-

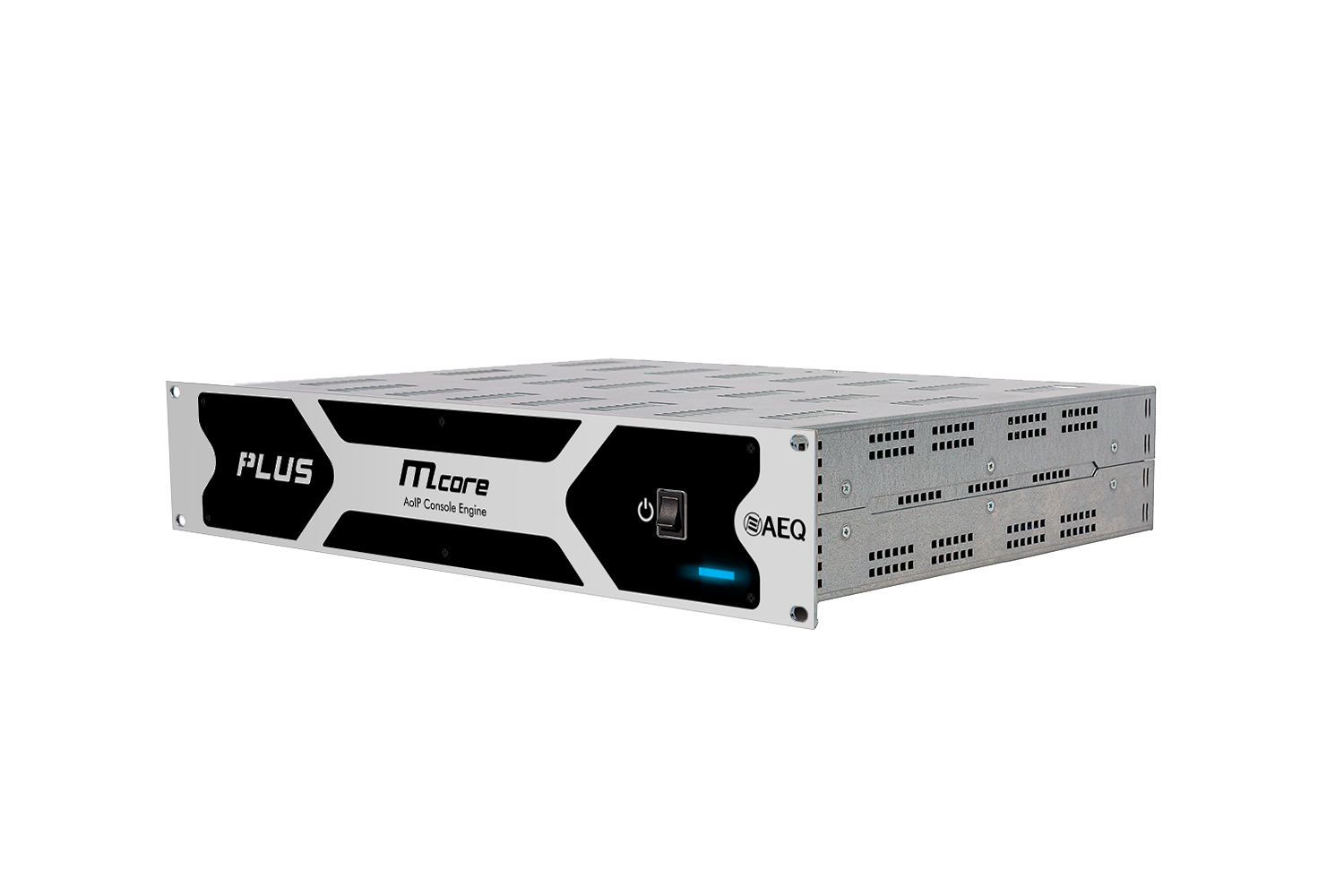

M-Core Mix EngineList Item 3
The Capitol Plus is powered by the M-Core Mix Engine which is a 2u, self contained audio mixer, I/O and processing device, coupled with the control surface by CAT connection.
All core I/O is included with the M Core, delivering a compact, powertful and easy to install solution for radio of all sizes.
-
Digital Flexibility - Analogue Price RangeList Item 4
The Capitol Plus offers all the flexibility of a fully digital radio mixing console at a price comparable to similrly spec'd analogue mixers.
Every Capitol Plus includes Dante AoIP contecivity as well as a wide range of other analogue and digital inputs/outputs, plsu hardwr IO, bluetooth and USB connectivity.
All fully configurable to meet your needs.
General Features
- Independent control and studio monitoring with configurable VU meters for all system signals.
- Two CUE monitoring outputs for Pre-Fader listening.
- Three integrated amplified headphone outputs: Control, Primary, and Secondary.
- Two high-precision stereo VU meters.
- Test tone generator.
- Externally synchronized clock, timer, and stopwatch.
- Silent convection cooling, ideal for self-operated formats.
- Optional redundant power supply.
Functionality
- Cough muting, ON-AIR signaling for control and studio.
- 5th microphone.
- Fader start, remote PFL, talkback, and automatic monitor muting.
- Configurable N-1 outputs.
- Integrated external equipment control (hybrids and AEQ audiocodecs) via programmable keys.
- Independent Pre Fader/Post-Fader configuration for all routings.
- Auto-start (selectable) with the latest settings or default configuration.
- ssignable signals to any control channel.
- Storage of signal settings in memory: one basic configuration and six user defined configurations.

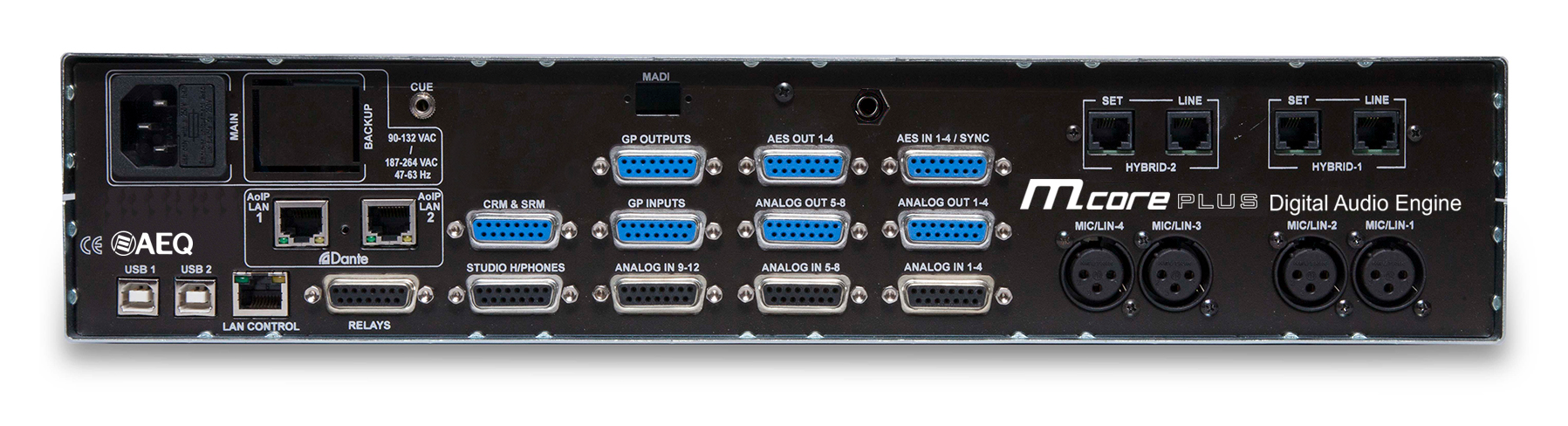

Engine Connectivity
- Analog stereo outputs for Control, Studio, CUE and Studio primary Headphone monitoring.
- Output for CUE.
- 4 mono mic/line inputs with phantom power and electronically balanced microphone inputs (plus 5th on the control surface)
- 12 analog inputs/8 analog outputs (can be configured as individual stereo pairs).
- 4 AES/EBU digital stereo inputs and 4 AES/EBU digital stereo outputs
- that can be configured as SPDIF.
- Sampling rate converters for the digital inputs.
- 2 USB (I/O) digital stereo inputs/outputs.
- 8 opto-coupled GPI’s, 8 opto-coupled GPO’s and 4 GPO’s with relays.
- Multichannel: 16 bidirectional channels via internal AoIP module (AES67 technology, Dante format), with 4 channels reserved for communication with the surface.
- Synchronization via AES/EBU and Dante.

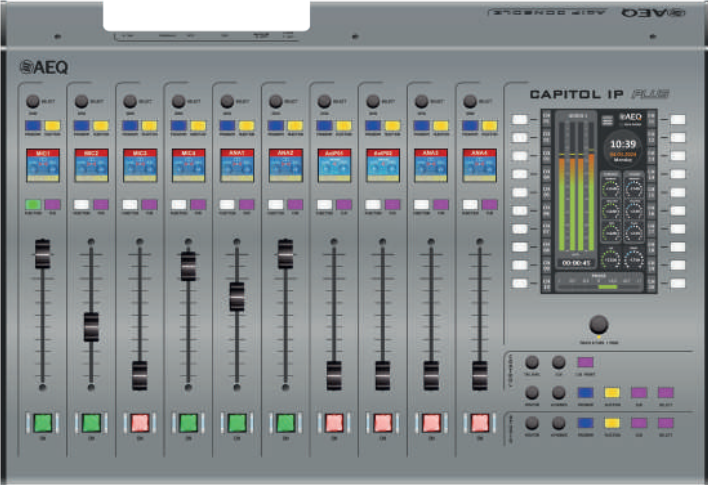

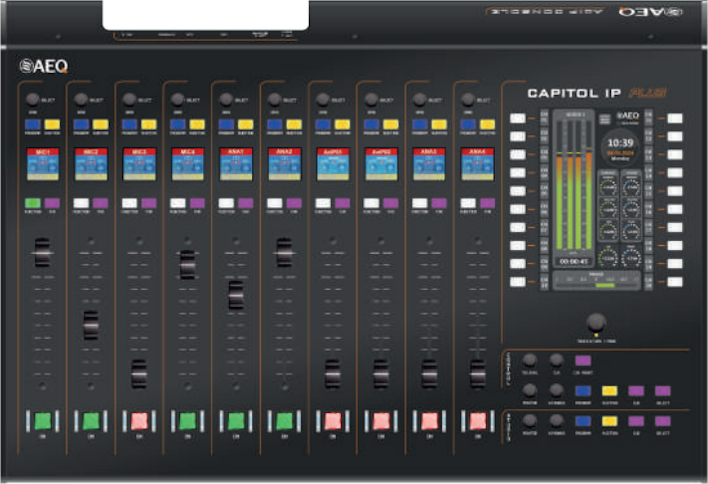

Available In Black Or Silver Finish
Download The Capitol Plus Brochure
Want to know more?
Download the brochure for more information about how the Capitol Plus can benefit your radio station.
