Make Connections With AEQ IP Audio Codecs
IP Audio Codecs allow to to create high quality, bi-directional, real-time audio connections over IP data networks.
GET STARTEDIP Audio Codecs...
IP Audio Codecs allows high quality, real-time to way audio communication between two locations via standard IP data networks. This means you can use Audio Codecs within your radio station or to connect to remote locations using standard data links.
Our range of AEQ IP Audio Codecs support multiple protocols to allow you to select the right balance of audio quality and bandwidth to match your situation. In most cases, the OPUS format provides very high quality audio over even modest data links but if you need to connect to older equipment using MP3 format, that is also possible.
AEQ Audio Codecs can connect using RTP for simple use within your own LAN/WAN (with know IP addresses) or SIP protocol for more fluid situations such as outside broadcasts or mobile reporting.
The AEQ Phoenix range offers codecs in a number of different physical configurations to suit all broadcast scenarios.
Applications include:
- Link Remote Studios
- Broadcasting From Home
- Studio To Transmitter Links (STL)
- Outside Broadcasts
- Mobile Reporting & Commentary
- Interfacing With Legacy Equipment (i.e. ISDN on the Stratos)
Meet The Phoenix Range
List of Services
-
Phoenix StratosBuy Now List Item 1

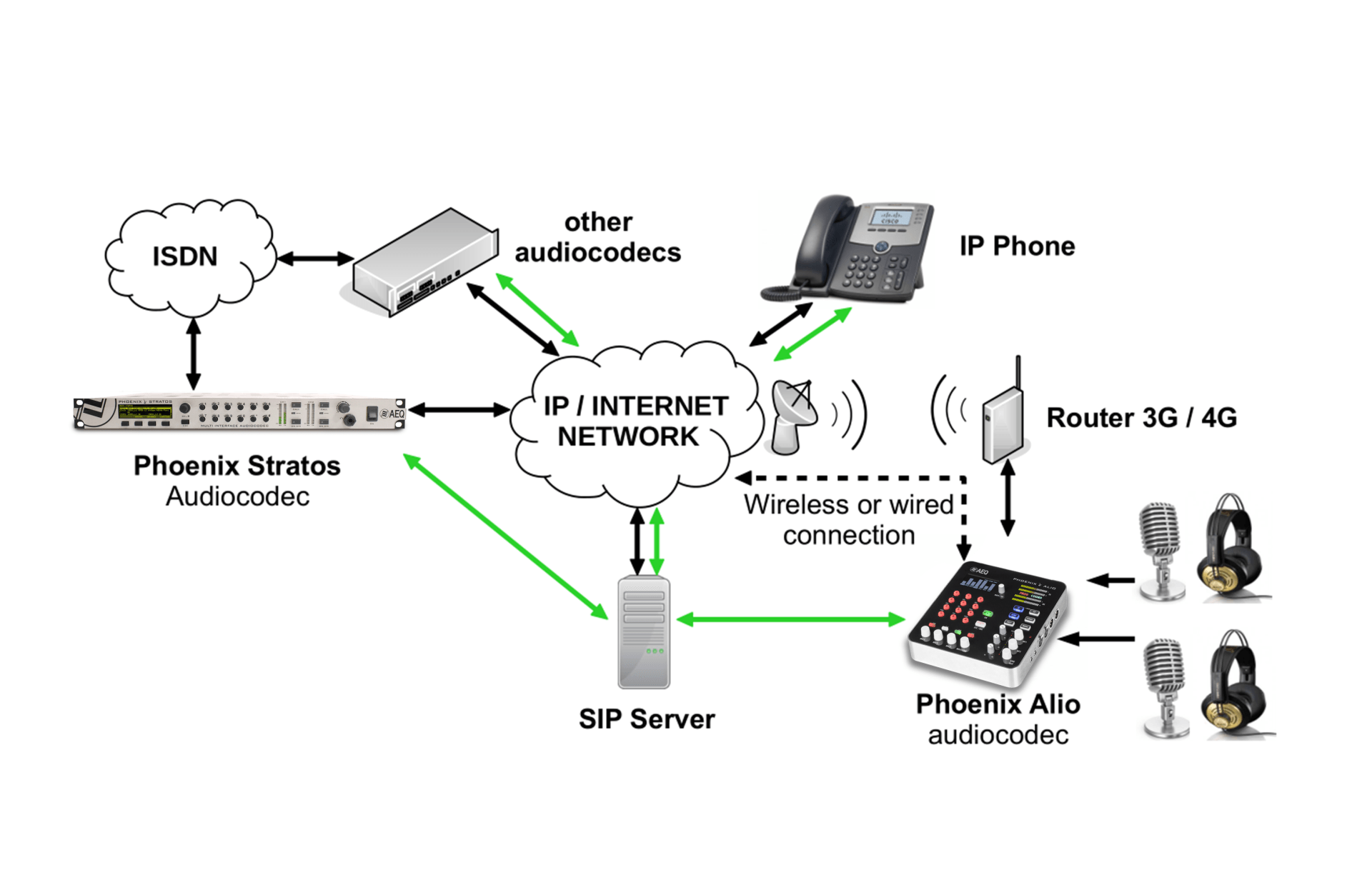

Phoenix STRATOS is a Dual channel rackmounted audiocodec with IP, ISDN and X21/V35 connectivity. Comprehensive, redundant, easy to use and controllable - for your station or network communications!
This AudioCodec is the solution for any broadcaster with the need for a versatile but yet straghtforward and efficient AudioCodec.
- Part of the AEQ Phoenix AudioCodec family.
- Capacity to establish two independent stereo/dual connections or four mono channels to several different destinations.
- Fully independent dual channels for program, coordination or backup, each one with its respective returns.
- Front panel user interface and and control software.
- Local or remote control of a single or a "pool" of units.
- Remote monitoring: includes SNMP server that allows the user to monitor status, alarms, etc.
- Multi- and Unicast capability.
- Ancillary data channel both in IP and ISDN.
- 4 GPIs and GPOs.
- Includes encoding algorithms in compliance with N/ACIP EBU Tech3326 recommendations plus the AEQ LD low delay algorithms. AAC is oprtional.
- Balanced analogue audio Inputs and Outputs on XLR connectors and AES/EBU digital I/O’s.
Phoenix STRATOS audiocodecs in combination with the ControlPhoenix MANAGEMENT SOFTWARE will put you in the control.
-
Phoenix Venus 3Buy Now List Item 2
AEQ VENUS 3 is a dual IP stereo, full duplex audiocodec system. With a single unit it is possible to establish two bi-directional stereo or four mono (to one or two different locations).
It was designed to meet the international recommendation N/ACIP EBU Tech3326 and includes the option of an adaptive buffer in order to absorb network jitter, DHCP allowing the automatic configuration of the IP Network parameters, FEC and automatic reference clock adjustment in order to synchronize both extremes of the communications.
The unit has balanced analogue Audio Inputs and Outputs through XLR connectors as well as digital audio AES/EBU I/O’s.
AEQ VENUS 3 are delivered readily registered in order to freely use the services of the AEQ SIP Server, simplifying the establishment of connections. The AEQ VENUS and its smaller companion AEQ MERCURY are perfect for STL applications, Radio broadcast networks, outside broadcast contributions or as digital hybrids for IP Telephony.
PHOENIX VENUS 3 audiocodecs in combination with the ControlPhoenix MANAGEMENT SOFTWARE will put you in control.
The Venus 3 is also available with an optional Dante AoIP module for direct audio links to Dante enabled devices.
-
Phoenix MercuryItem Link List Item 3
The AEQ MERCURY is a full duplex, Stereo, IP audiocodec allowing for connections in Stereo, Dual or Mono. The codec is exclusively controlled through a simple PC interface, allowing for the remote or local management of one or a series of audiocodecs.
Its very compact design (22 cm (W) x 4,5 cm (H) x 20 cm (D) – two units can be allocated in a 1RU 19” tray) holds a professional audiocodec that is compatible with the majority of audiocodecs from other manufacturers since the unit was been developed in accordance with the international recommendation N/ACIP EBU Tech3326. The AEQ MERCURY supports SIP signalling and the most common encoding algorithms, including the proprietary AEQ LD and optionally AAC encoding modes.
The unit has balanced analogue Audio Inputs and Outputs through XLR connectors as well as digital audio AES/EBU I/O’s.
AEQ MERCURY are delivered readily registered in order to freely use the services of the AEQ SIP Server, simplifying the establishment of connections. The AEQ MERCURY and its bigger companion AEQ VENUS are perfect for STL applications, Radio broadcast networks, outside broadcast contributions or as digital hybrids for IP Telephony.
PHOENIX MERCURY audiocodecs in combination with the ControlPhoenix MANAGEMENT SOFTWARE will put you in control.
1u Rack conversion kit available.
-
Phoenix AlioBuy Now List Item 4
With ALIO, AEQ reinvents the concept of portable IP audio-codec. It has been specifically designed for sports reporting applications, but it has also been optimized to make it easy to use in the most varied scenarios, even musical events.
Its compact design, resistant to pressure, shocks and even splashes of liquids, is optimized for outdoor use, where optimal handling is not always guaranteed.
It can connect to other codecs from most manufacturers thanks to the SIP communications protocol, according to N/ACIP Tech 3326 EBU standard. But when connecting to another AEQ codec, users can take advantage of an exclusive set of tools that makes the establishment of communication and the control of the unit a simple task.
Phoenix ALIO audiocodecs in combination with the ControlPhoenix MANAGEMENT SOFTWARE will put you in the position that you in control.
Phoenix Management Software
The AEQ PHOENIX Family of IP AudioCodecs provides what you would expect from any IP communications platform. CONTROL!
Weather it's a single peer-to-peer connection or a multi-code network operation for a large network, with any of the PHOENIX Family audiocodecs in combination with the ControlPhoenix MANAGEMENT SOFTWARE will put you in full control.

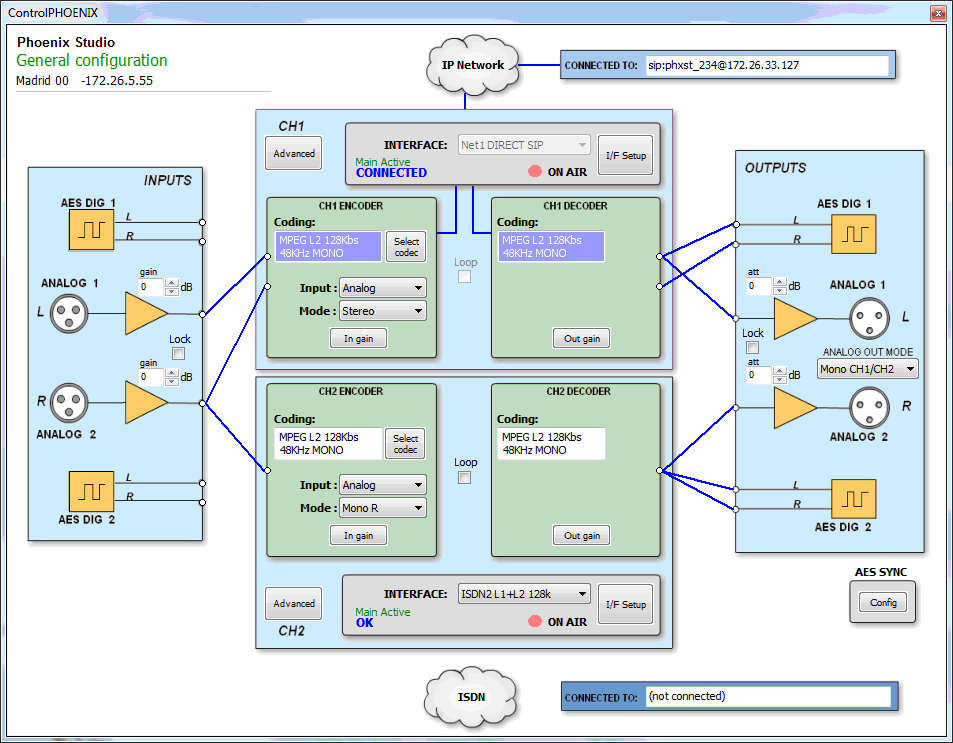

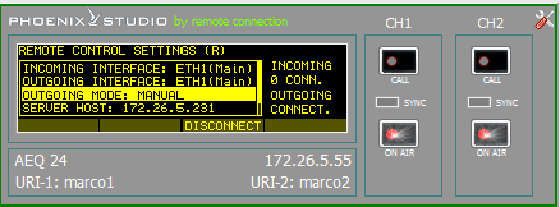

The ControlPhoenix software allows the control and management of Phoenix Studio, Phoenix Mercury and Phoenix Venus audiocodecs through IP. The equipment can either be part of the same local area network as the PC or workstation that controls them or belong to remote networks. Local equipment are automatically discovered when the application is launched. In order to control the remote units, first of all, they need to be reachable and then the user needs to identify them by their IP address.
In order to control a Phoenix Studio audiocodec operating in ISDN, it is necessary to additionally provide an IP connection that is reachable from the PC where the software is installed.
Subject to a fee that depends on the of user licenses, this application can be installed and run on several computers simultaneously. Up to four different users or application sessions can concurrently control one AudioCodec.
