D&R Airence USB Broadcast Mixer

D&R Airlite USB
The Airence USB mixing console from D&R offers a flexible small format mixing desk that can be extended to have more faders and a split configuration with the optional Airence Extender module. The Airence USB can be extended further using the D&R Studio Remote to provide guests with the ability to control their own headphone levels or temporarily mute their microphones with the 'cough' button.

The Airence USB main mixer modules is a six fader unit with four triple input channels (mic / line / USB audio) plus two additional Telephone / Line channels. When in Telephone mode the faders use the built in dual TBU's to interface with standard phone lines.

There is also a comprehensive main output section which includes LED VU meters as well as a programmable button section that features 16 'user keys' that work with a range of playout systems.

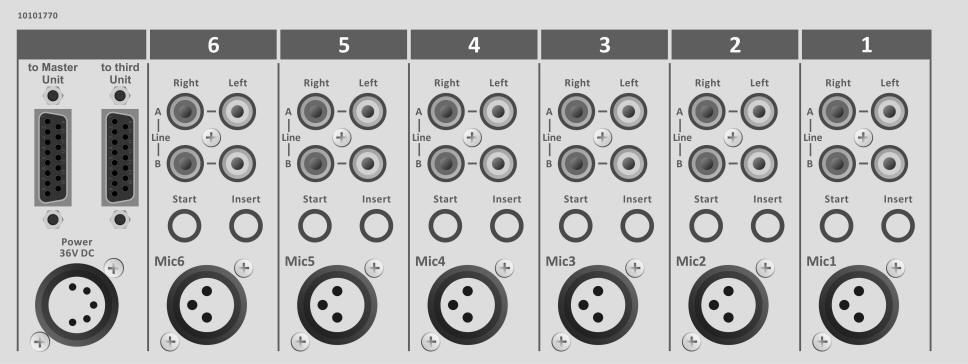

The optional Airence Extension module expands the desks with an additional six dual input channels (Mic / Line) giving you a potential total of 12 faders with up to 28 sources connected.

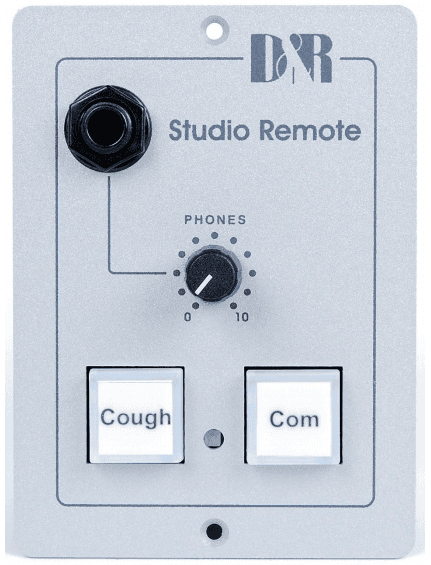

The Airence is also compatible with the D&R Studio Remote to allow your guest mic positions to adjust headphone volume and cut mics using the 'cough' button or 'talkback' to the presenter using the 'Com' button.

Features

Browse the key features of the broadcast console to see how it could work in your studio.

Check out the mixing desks specifications to see if it will meet your needs.

Explore the console via the gallery section. Click on the photos to view high resolution images.

Features

Main Airence USB Module Key Features:
  • 6 Channel Broadcast Mixer
  • 4 Mic/Line / USB Audio Channels (inc phantom power)
  • 2 Phone / LIne Channels (with built in TBU)
  • 4 Built-in USB Sound Devices (linked to 3 channels) - ideal for playout systems such as Myriad
  • 16 User Buttons
  • Mutes Speakers When Mics In Use
  • Desktop Or Flush Mounting

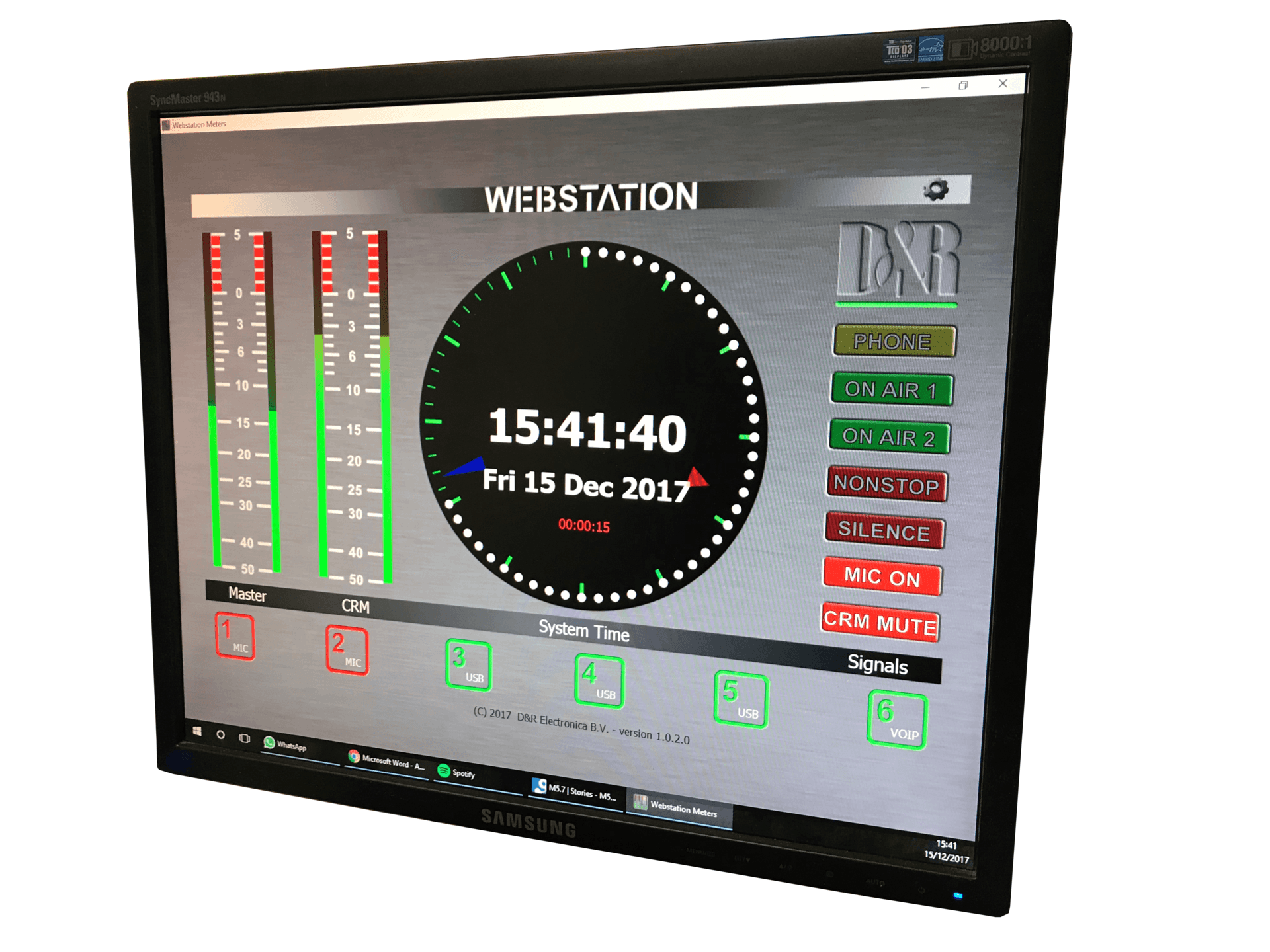

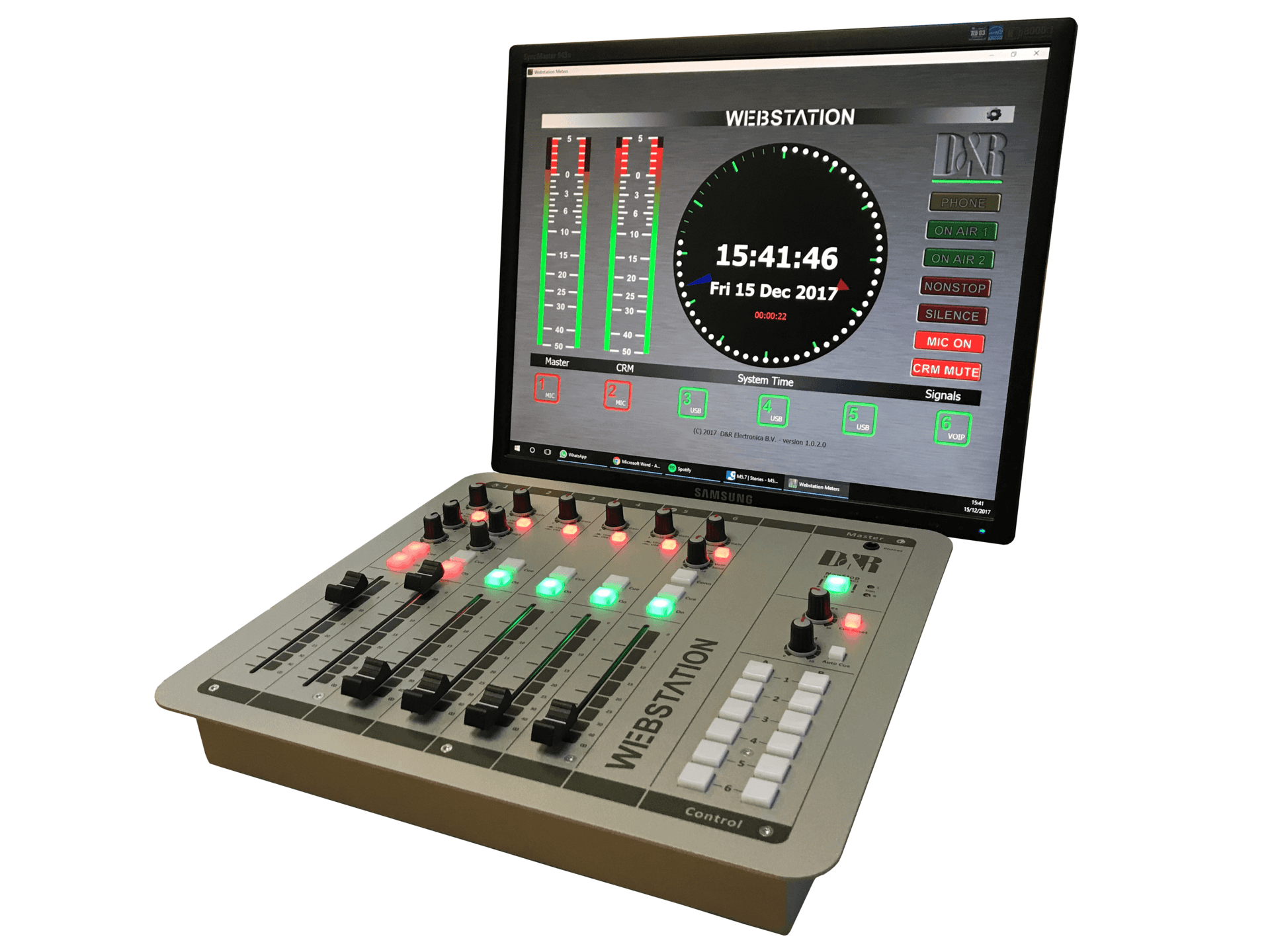

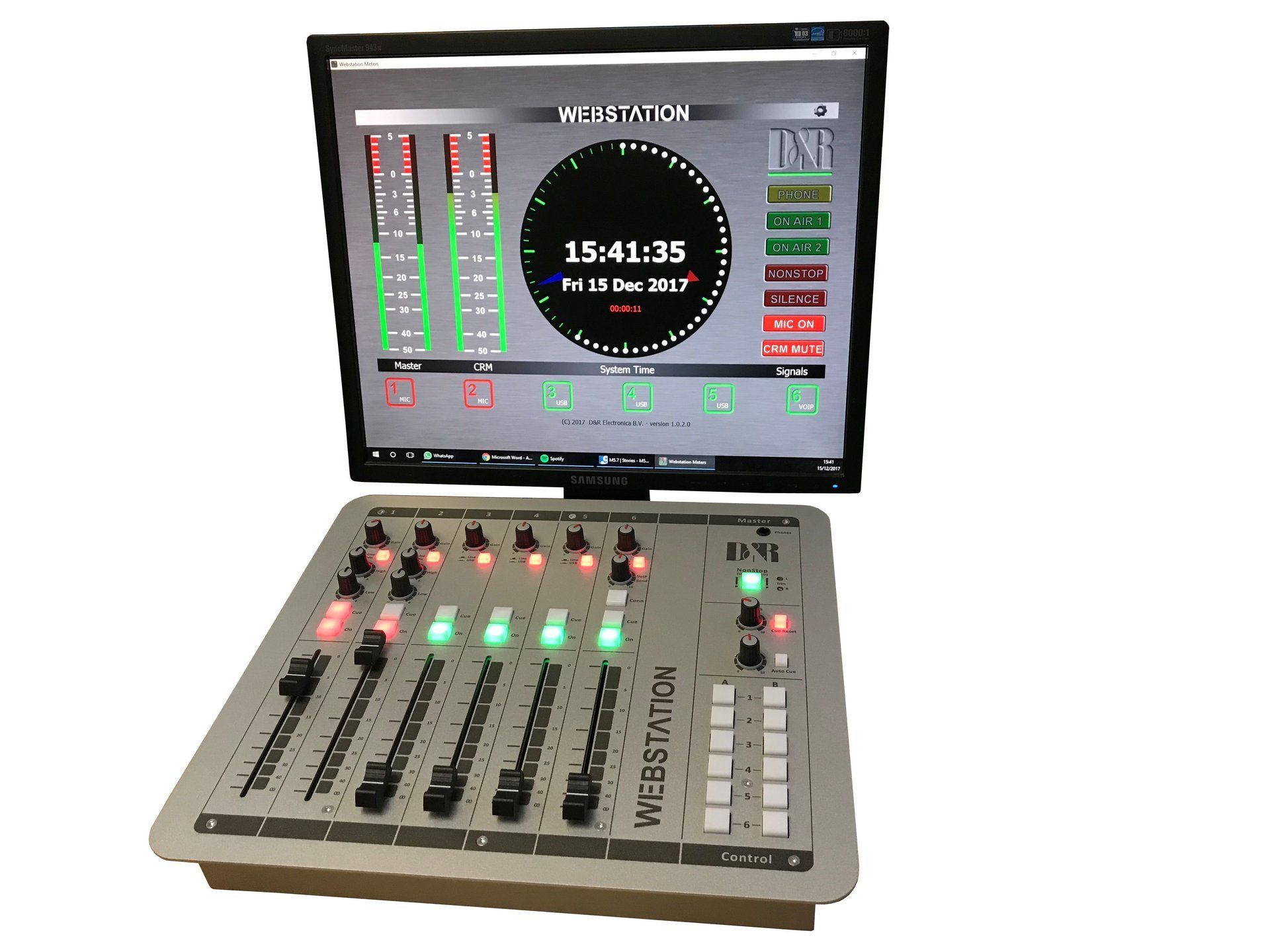

  • Includes Screen Meter & Signalling Software
  • Built in LED VU's
  • Expandable Solution

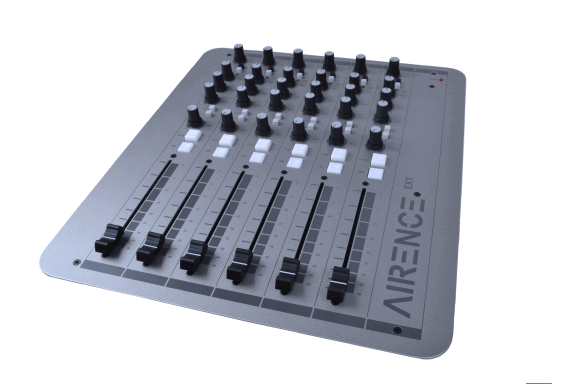

 Airence Extension Module Key Features:
  • 6 Channel Expansion Module
  • 6 Mic / Line (inc Phantom power)
  • Desktop Or Flush Mounting

Specifications

The list below shows the specification highlights at a glance. For a more detailed list of the specifications, click on the 'Full Specification List' option below.
Key Specifications:
  • 6 x Mic / Line / USB Audio Channels
  • 2 x Phone / Line Channels (inc built in TBU)
  • Main Output
  • Record Ouput
  • Control Room Speaker Output
  • Presenter Headphone Output
  • 16 Definable User Buttons
  • On Mixer LED VU Meters
  • Screen Based Meters, Status Warnings (Mic Live etc) & Clock

Full Specification List

INPUTS
Mic inp : bal, 2 kOhm, XLR ,48 volt Phantom.
Noise : - 128 dBr (A-weighted). (That 1510)
Sensitivity : - 70dB min, OdB Max.
Insert : Jack unbal. send 600 Ohm -10dBv.
Aux Ret. : unbalanced 10kOhm -10dBv.
Line inputs: unbal., 10kOhm, Cinch.
Gain : range of 40dB.
Phono inp.: unbal. 47kOhm, 5 mV. (option)
USB : 4x Stereo in and 4x stereo out.
Extern in : - 10 dBV at 10kOhm.
Aux ret. : - 10 dBv at 10kOhm stereo

USB
Fully compliant with USB 2.0 playback
and record mode. 4x Stereo in and
Main stereo or SUB signals out.

USB CONTROL SECTION
24 free assignable illuminated switches
plus encoder based on the HID protocol.
TELEPHONE HYBRIDS
RJ-11 connectors for phone line and dialler
Mix Minus rejection @1kHz -40dB.

OUTPUTS
Left/Right : + 6dBu bal. XLR.
Monitor/Aux : + 6dBu unbal. on Cinch.
Studio : + 6dBu, Jacks.
Tape outp : -10dBv.
Headphone : 32-600 Ohm, Jack.
Announcer : 32-600 Ohm, Jack.
USB out : PROGRAM /SUB/AUX.
Options : AES-3 Digital PRG outputs.

EQUALIZER
High : + / -12 dB at 12kHz shelving.
Mid : + / -12dB at 1 kHz bell curve.
Low : + / -12dB at 60 Hz bell curve.

OVERALL
Frequency response : 10 - 60.000Hz.
Distortion : < 0.01% max at 1 kHz.
Start switch : reed relay. (24volt/50mA)
Ledbars : 11 segment +
: Software meter app.

CONTROL SOFTWARE
A software program is included in the delivery
for programming the Control section.
(Airence Virtual Keyboard Mapper)

DIMENSIONS
Main unit
Left-Right(X) : 482mm
Front panel thickness: 2mm
Radius Corners : 20mm
Front-Back (Y) : 355mm (8HE).
Height : 101,50mm.
Weight : 9kg.

Extension unit
Left-Right (X) : 302mm
Front panel thickness: 2mm
Radius Corners : 20mm
Front-Back (Y) : 355mm (8HE).
Height : 101,50mm.
Weight : 7kg.

What we think

"I think this is a brilliant solution for stations that need a higher number of faders but don't have a massive budget"

Helen Webster - Broadcast Radio
