Software Control Keyboards
Our range of software control keyboards are designed to work with the Myriad Playout system. All keyboards come pre-configured and programmed to with Myriad 5 Playout or Myriad 4 Playout although they also include the programming software so if you want to customise them, you can!

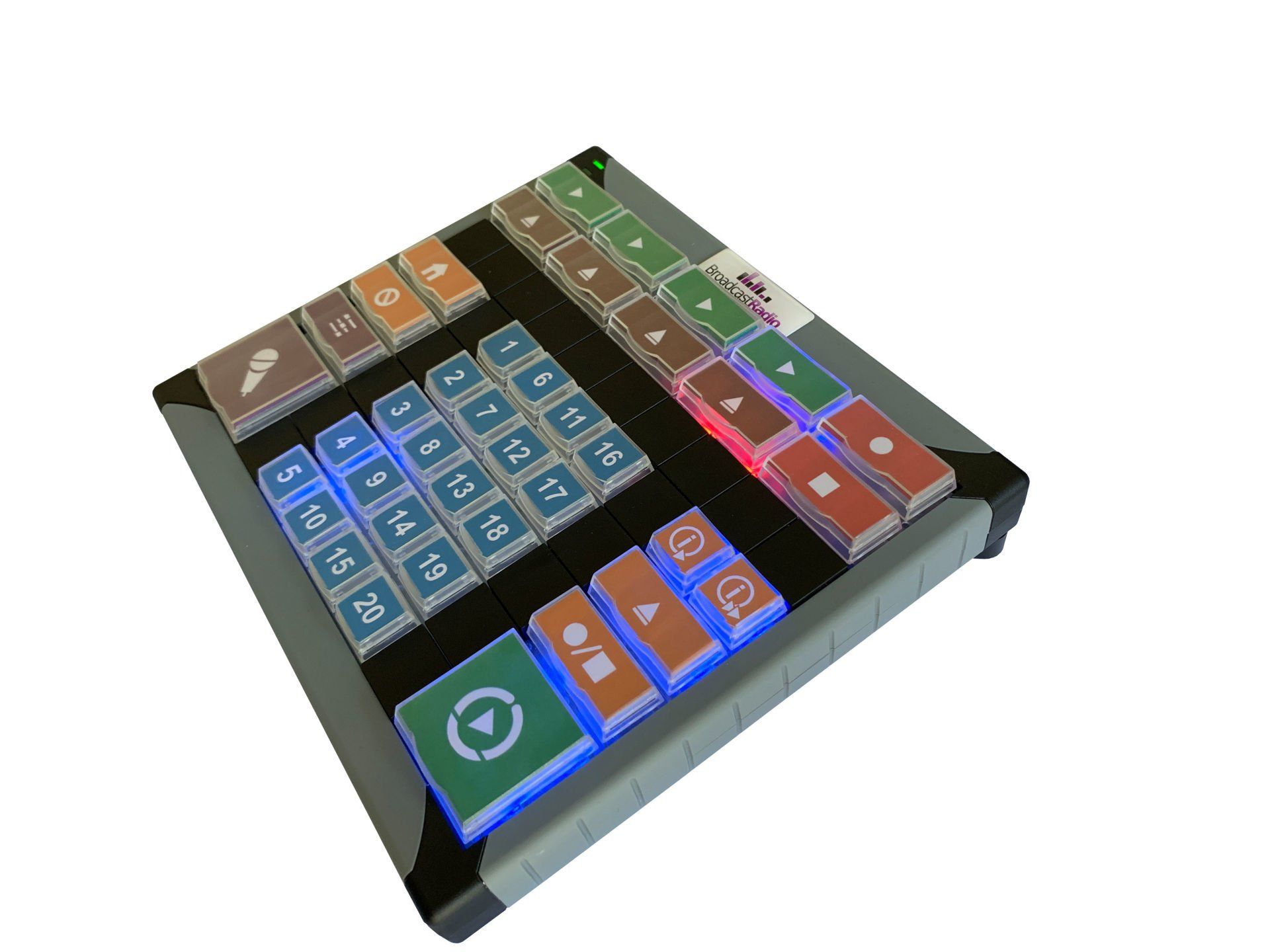

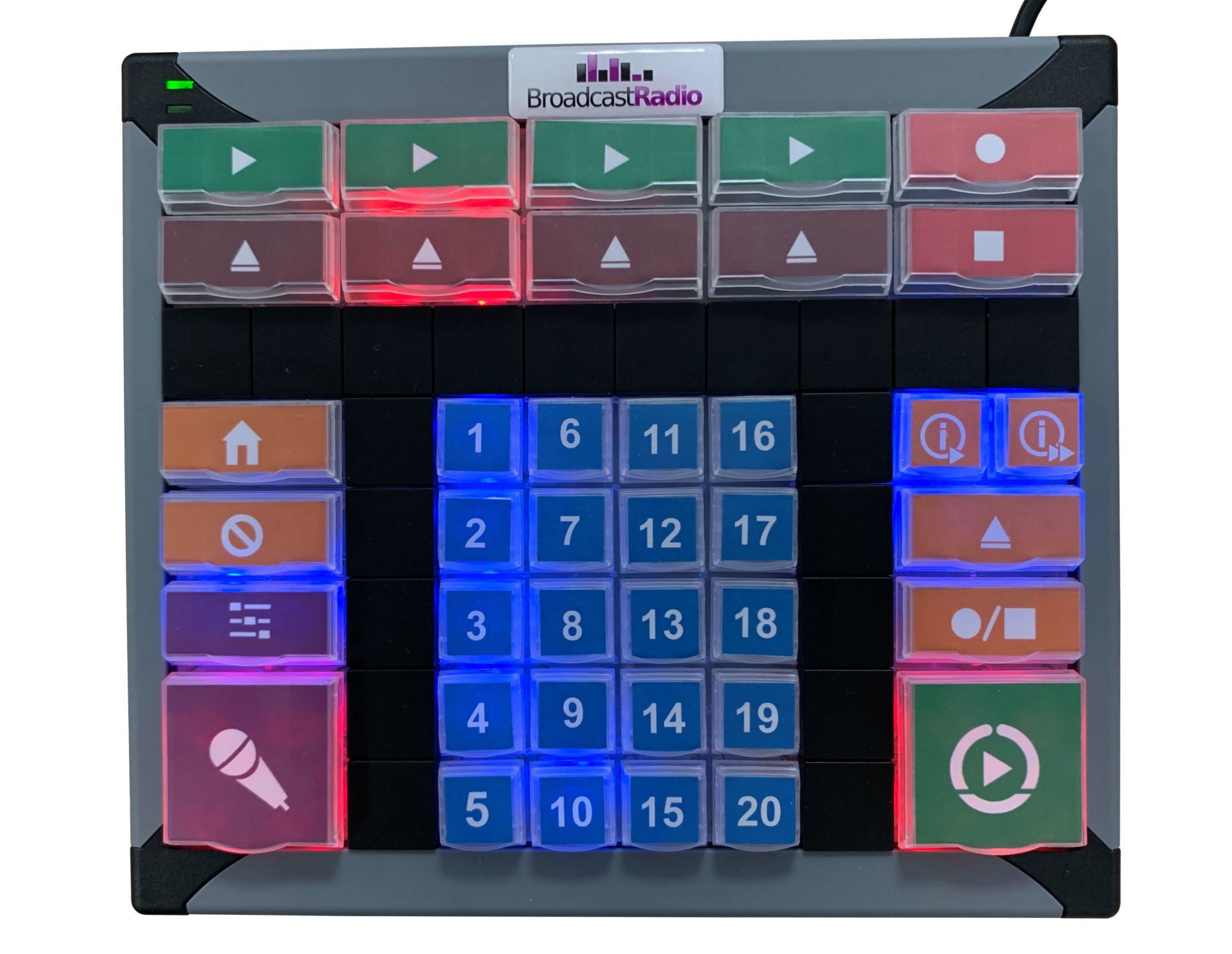

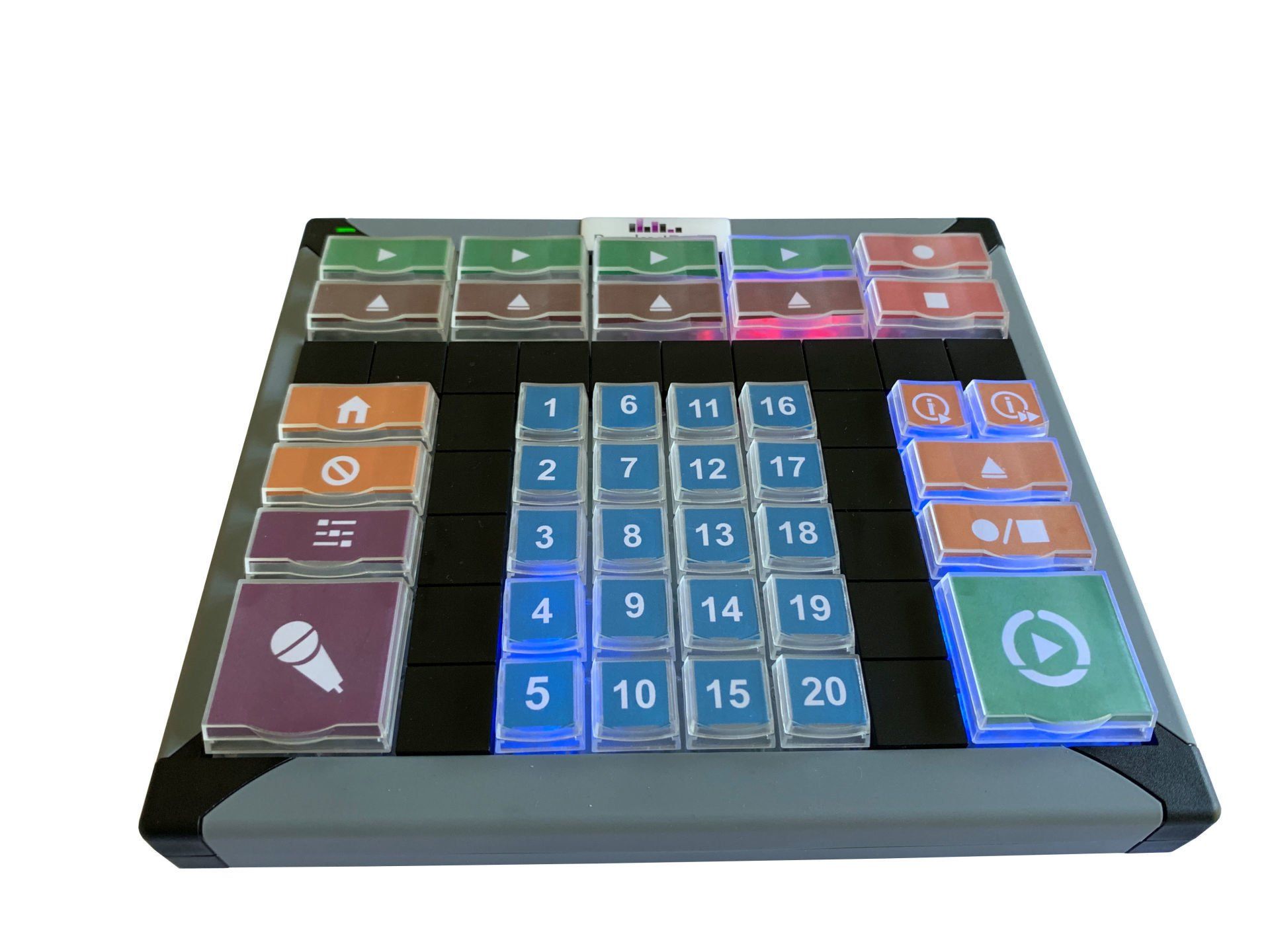

K600 Myriad 5/6 Playout Keyboard
The K600 for Myriad 5 Playout lights up keys and changes colours in response to events happening in Myriad. It also connects directly to the software meaning it will work even if Myriad is minimised.
Dimensions: 210mm (w) x 185mm (d) x 35mm (h).
- Play / Pause 1-4 (Lights and flashes when active)
- Eject 1-4 (Lights when active)
- Start/Stop Record (Flashes when recording)
- Favourites 1-20 (Lights when assigned)
- Log Go (Lights & flash to show status when active)
- Log Dump (Lights when active)
- Log Home
- Log Toggle Current Item Ending (Lights when active)
- Log Soft Delete / Restore
- Log View Smart Info For Current Item (Lights when active)
- Log View Smart Info For Next Item (Lights when active)
- Toggle Floating Segue Editor (Lights when active)
- Voice Tracking Step Button (Lights when available)
The K600 connects via USB and will operate regardless of whether Myriad is minimised or has 'focus'. You an also use two K600's plugged into the same Myriad Playout PC to give control to two presenters at the same time.
Once you have your K600, you need to enable the built in support within Myriad 5 Playout. Download the simple guide to enabling the K600 by clicking below.
K500 Myriad 5/6 Playout Keyboard
The K500 for Myriad 5 & 6 Playout provides dedicated control of your Myriad 5/6 Playout system via USB.
Dimensions: 197mm (wide) x 223mm (depth) x 45mm (height)
This includes:
- Play 1-4
- Eject 1-4
- Favourites 1-20
- Start/Stop Record
- Log Go
- Log Home
- Log End Type Toggle (current item)
The K500 works as a USB keyboard and can be used in conjunction with other USB input devices. Button legends are printed directly on the coloured key caps.
