The UR7 Digital Studio
Our top end studio package features a raft of premium features and equipment to provide the ideal studio for serious broadcasters. The layout of the studio gives the presenter 'line of sight' to the guests making it a better solution for talk, music or news based radio production.

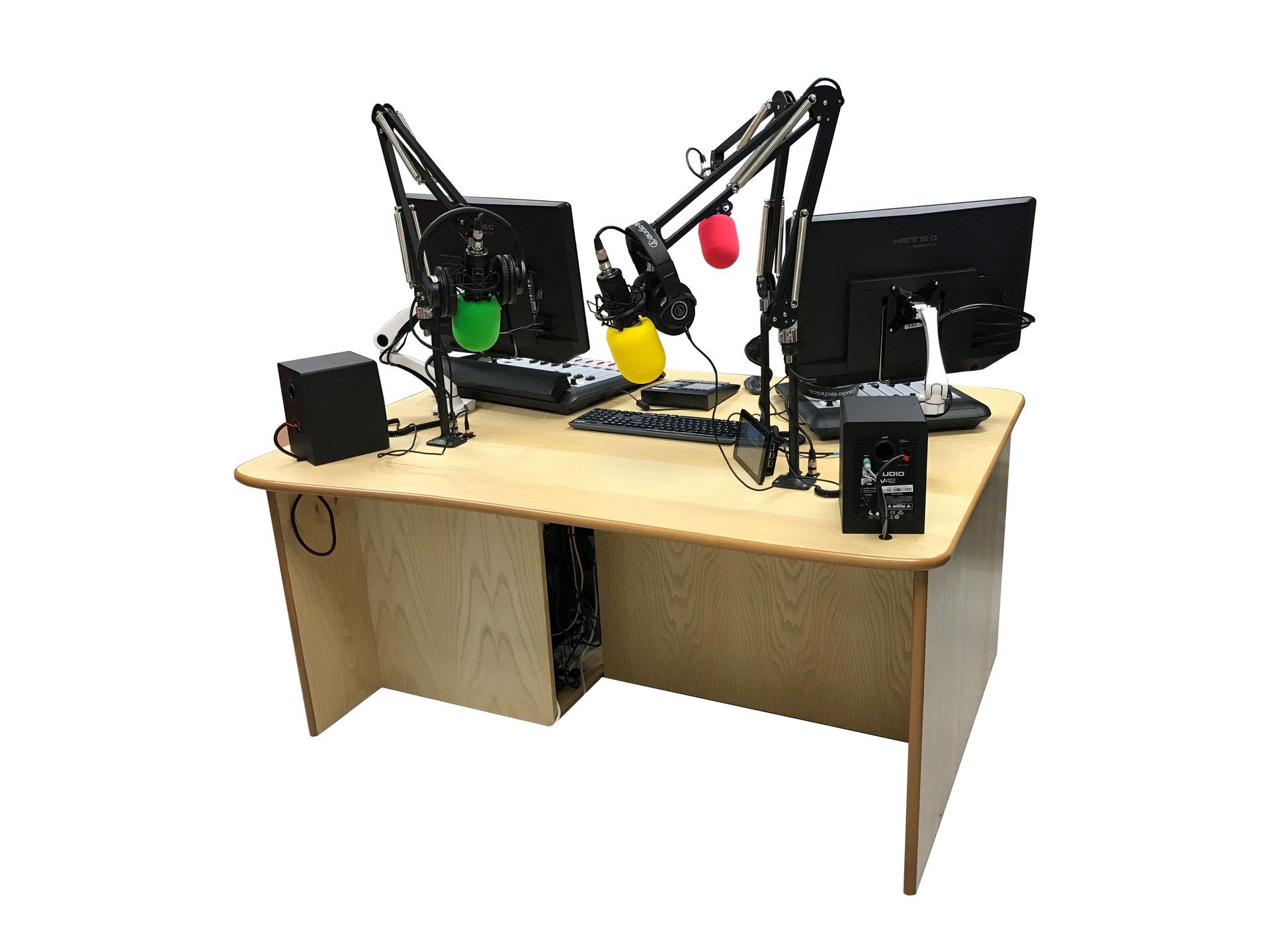

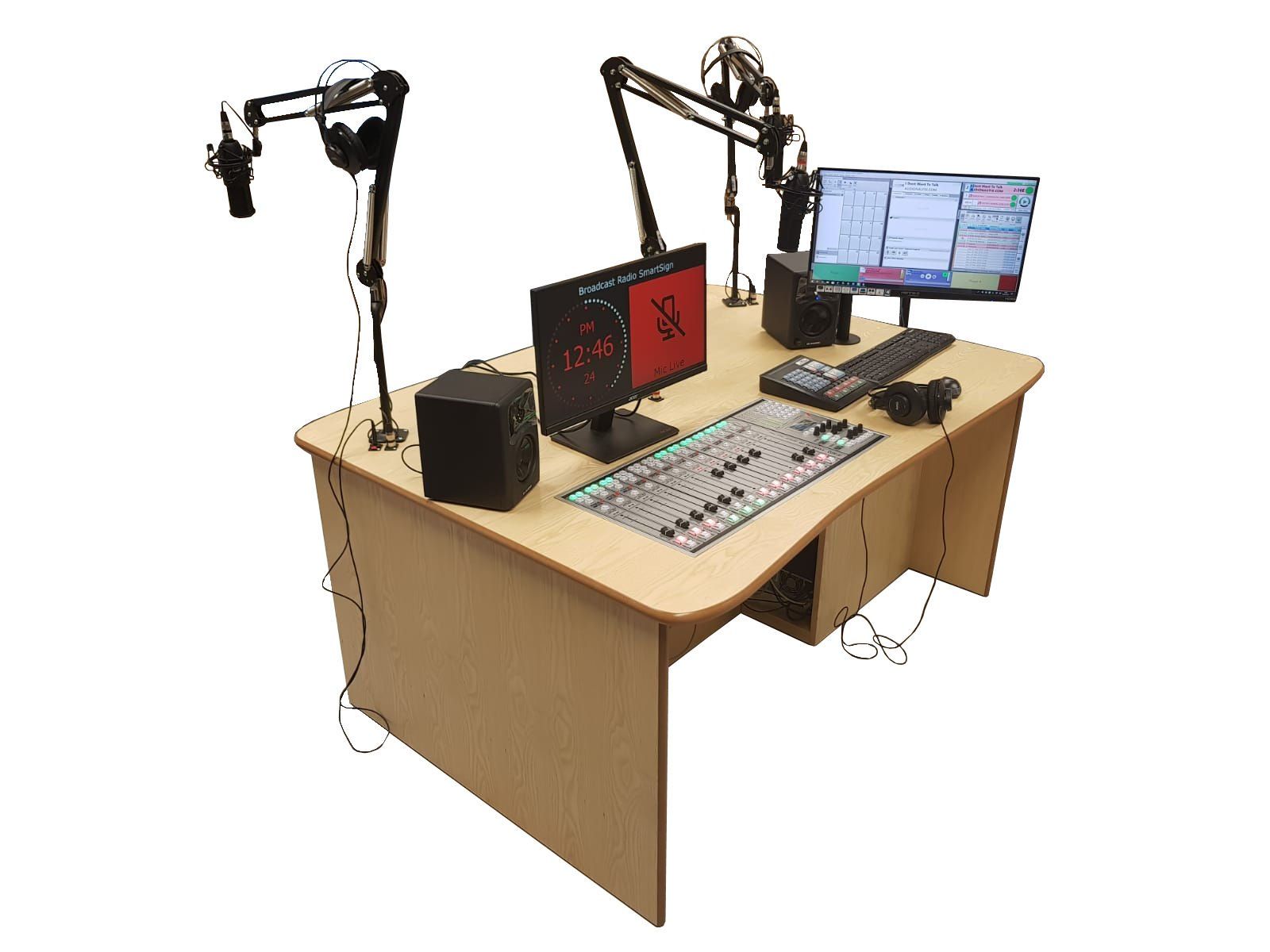

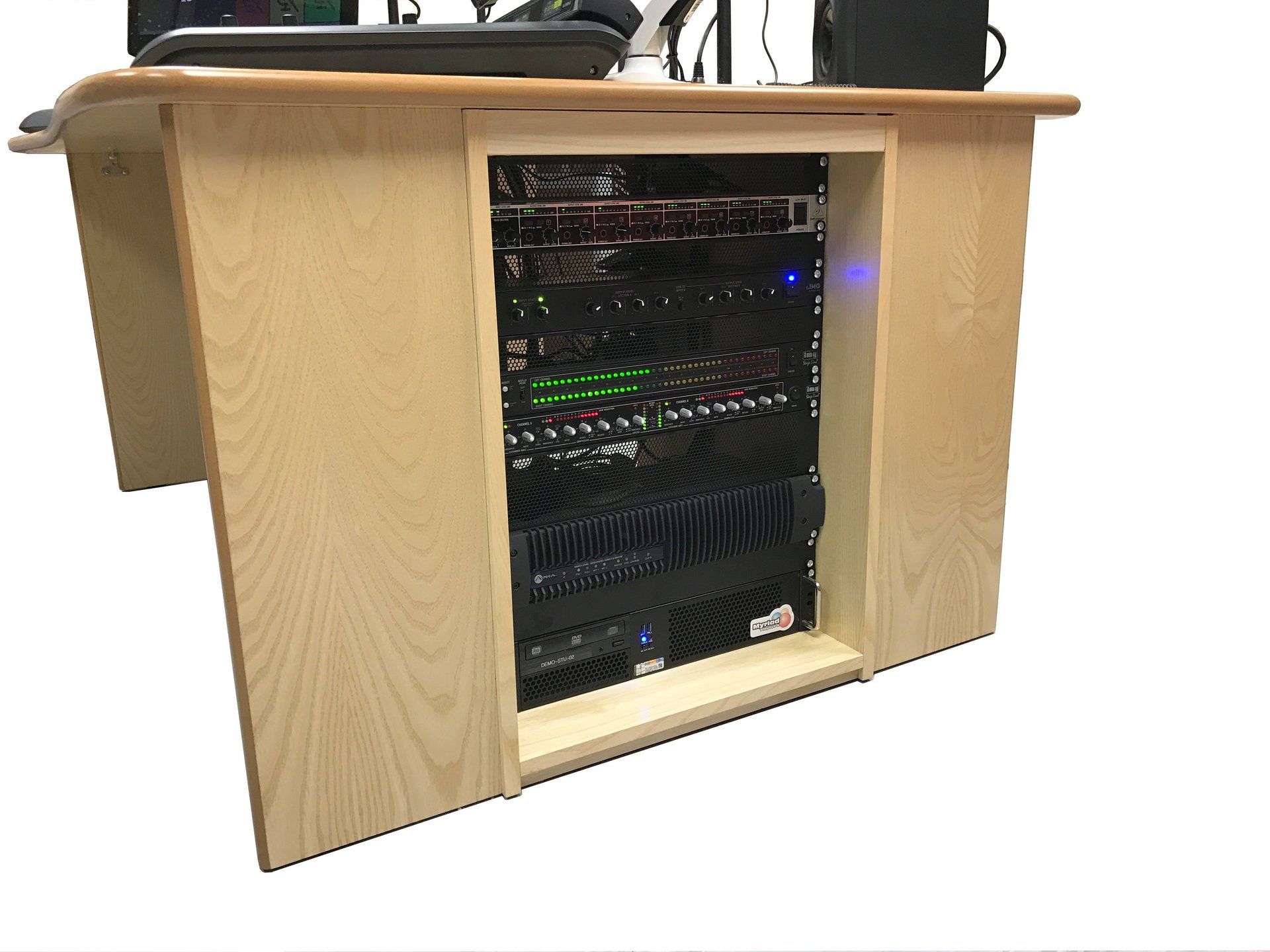

The UR7 features premium varnished wooden studio furniture designed to allow the presenter to have direct 'line of sight' to the guests sitting opposite. The equipment rack is integrated into the side of the unit and the twin monitors are mounted on articulated monitor arms.
Mixing is taken care of by the AEQ Forum IP digital console configured as a straight console providing 12 assignable faders. The Forum IP audio engine is mounted in the rack and connecting cables are fed through the desktop to minimise visible cables.
Premium microphones, microphone arms and headphones are used throughout to provide the highest level of audio fidelity. The studio also features high quality active speakers for bright, accurate audio reproduction.

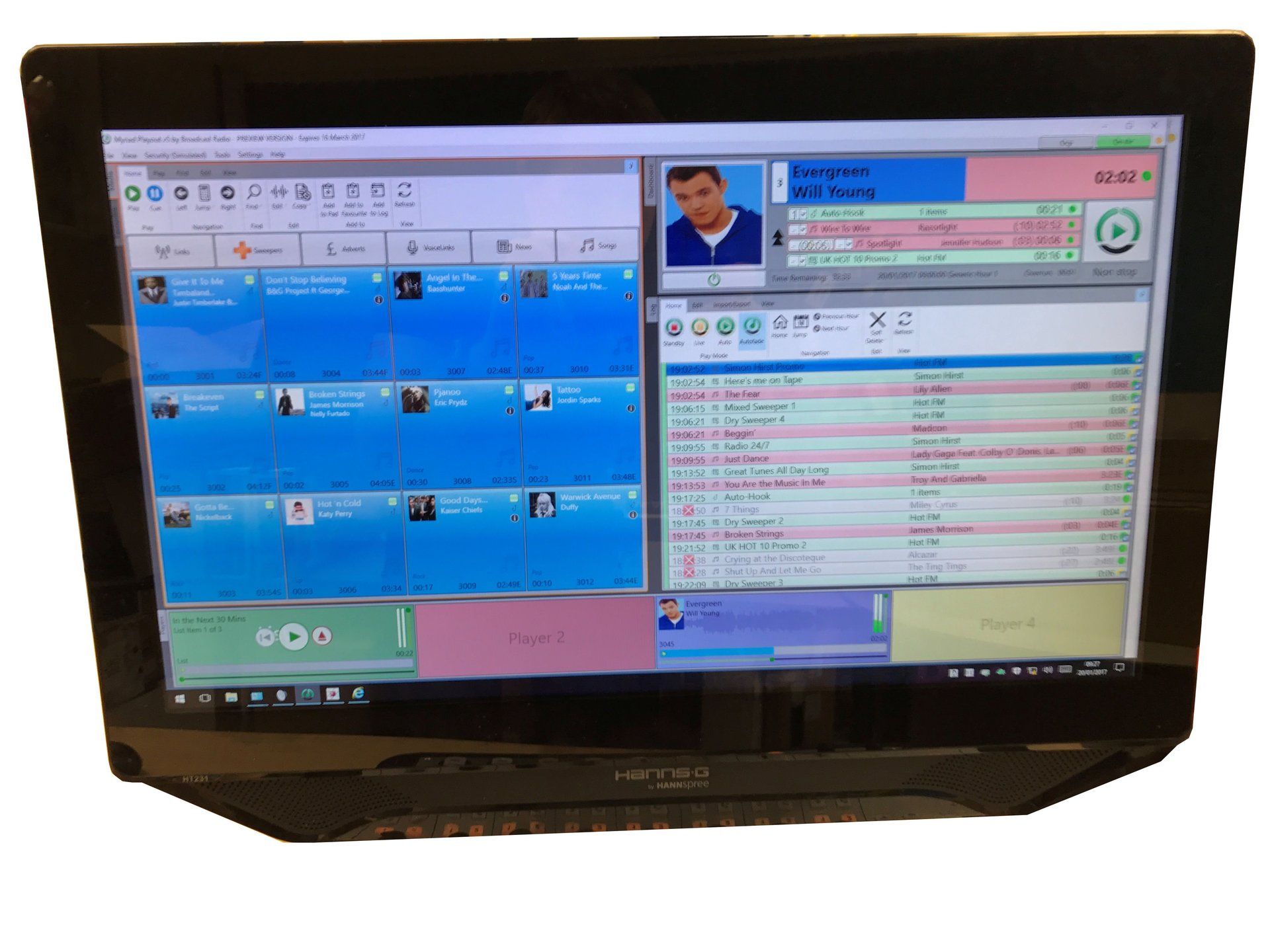

There is a 24" touchscreen located on the right hand side running the latest Myriad Studio software which features multiple layouts and many advanced features such as the SmartInfo Panel(tm).

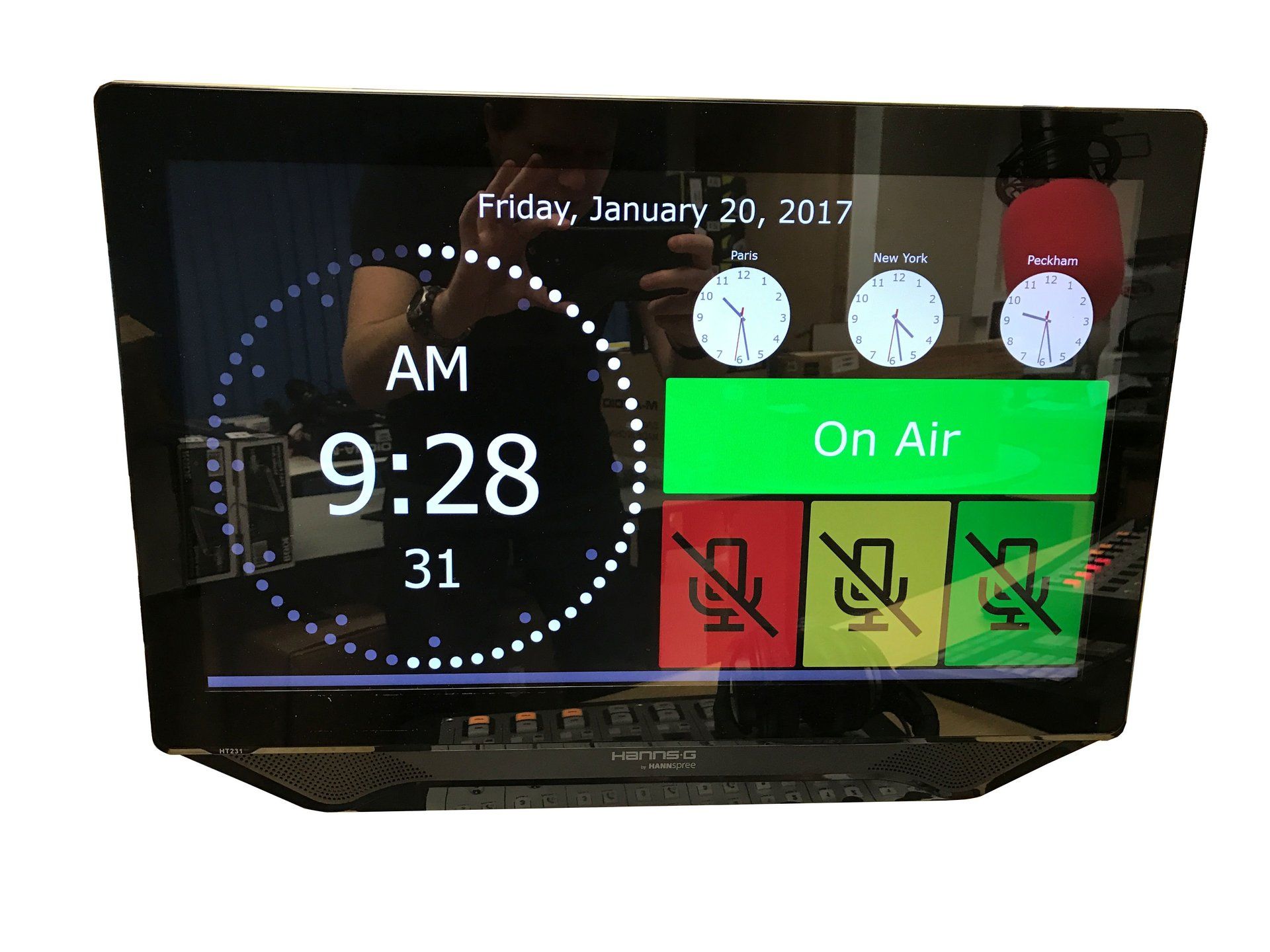

The left screen is a 24" SmartSign which can be configured to display clocks for multiple time zones as well as 'mic live' and on-air status.
The UR7 provides everything you need for a professional digital radio studio.
Contact us for latest pricing
Browse through the list of equipment and software included in the UR7 Digital Deluxe Studio package.
Check out the studio dimensions so you can start to plan where you will put you new studio.
Explore the package via the gallery section. Click on the photos to view high resolution images.
What's Included
This below highlights the equipment and software included in the studio package.
- 1 x 2u Rack Playout PC (i5, 16GB Ram, 1TB SSD, Windows 11, PCIe NIC, Dante Audio Driver, 24 Inch Touchscreen, 24 Inch Widescreen, Wireless Keyboard & Mouse)
- 1 x UR7 Studio Furniture
- 2 x 2u Blank Rack Panel
- 2 x 2u Vented Rack Panel
- 1 x 16 Port Network Switch Rackmounted
- 1 x Premium Headphone Amp (6 way)
- 1 x Forum Lite Digital Mixing Console (12 Fader)
- 1 x Capitol Dante Module (32 x Mono Chanel I/O)
- 2 x Single Monitor Arm
- 1 x K600 Control Keyboard For Myriad 5/6 Playout
- 3 x Rode Podmic
- 3 x Premium Rode Mic Arms
- 3 x Budget Studio Headphones
- 1 x Small Premium Active Speakers
- 1 x BR Speaker Stand (SR Studios)
- 1 x Surface Mount LED Mic Indicator Light (inc controller)
- 1 x Smart Sign 2 - For Windows (Software Only)
- 1 x Myriad 6 Playout - Studio Edition
- 1 x Large Studio Build & Testing
- 1 x Studio Package Custom Cabling & Connectors
- 1 x 12 x Month UK Office Hours Broadcast Radio Software Support Contract
- 1 x Annual Broadcast.Radio Standard Streaming (1000 streams @128kbps + Web Player)
Myriad Full Suite - Get Everything

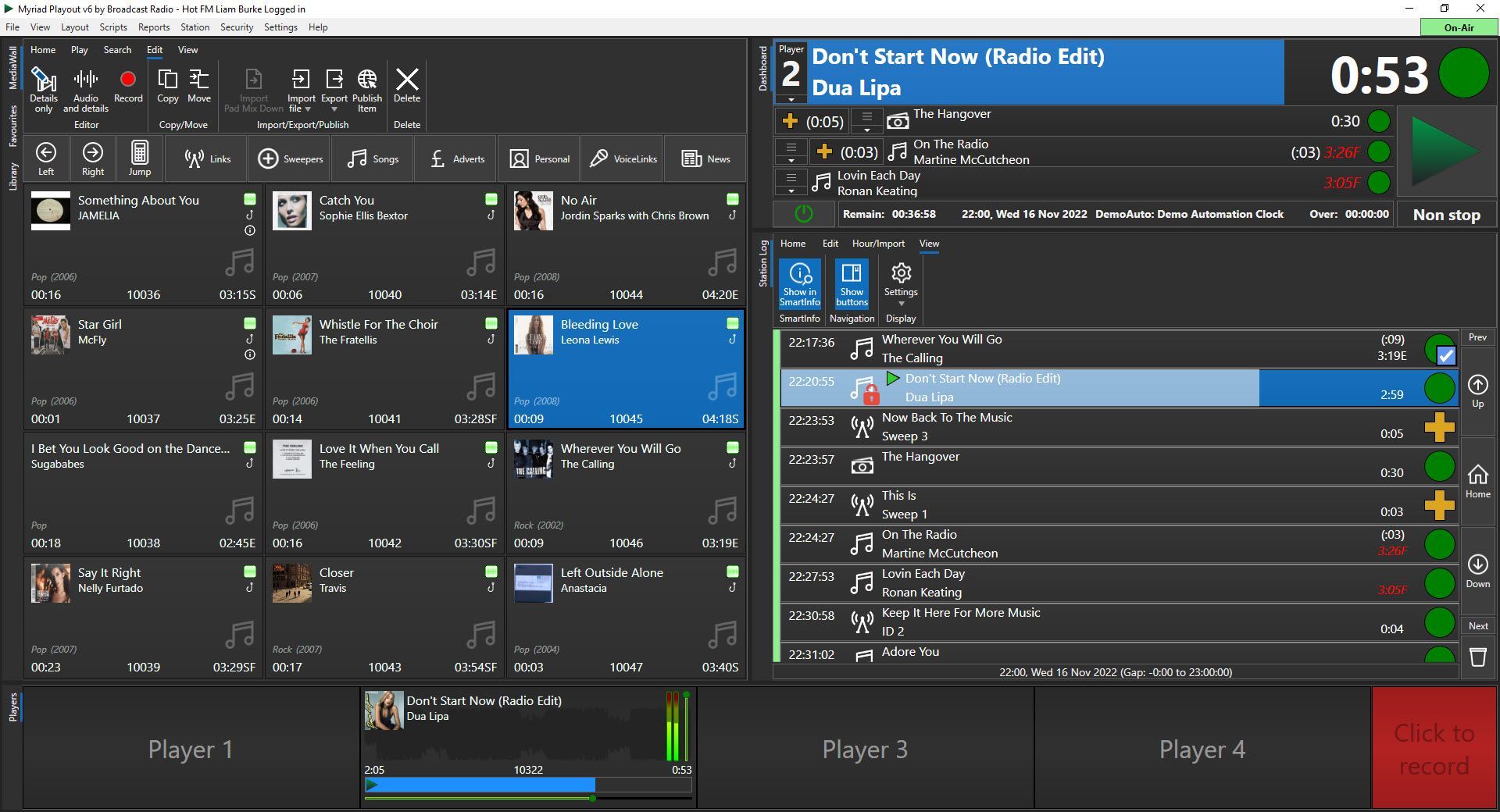

Myriad Playout is the UK's No.1 radio playout and automation system and can be found in more radio stations than any other system. Myriad is also used across the spectrum of radio broadcasters with our customer base including commercial, community, hospital, internet, student and school radio. So the system included in your studio package is the same technology we supply to the rest of the radio industry.
Your studio package also includes the full Myriad Suite which means you get a full Myriad Studio license as well as AutoTrack (music scheduling), Advert Manager (advert scheduling), OCP, AutoPlayer, AutoImporter plus more.
Together, the Myriad Suite provides everything you need to plan, launch and run a radio station using industry standard tools.
UR7 Digital Studio - Seriously Great Equipment For Seriously Great Broadcasters

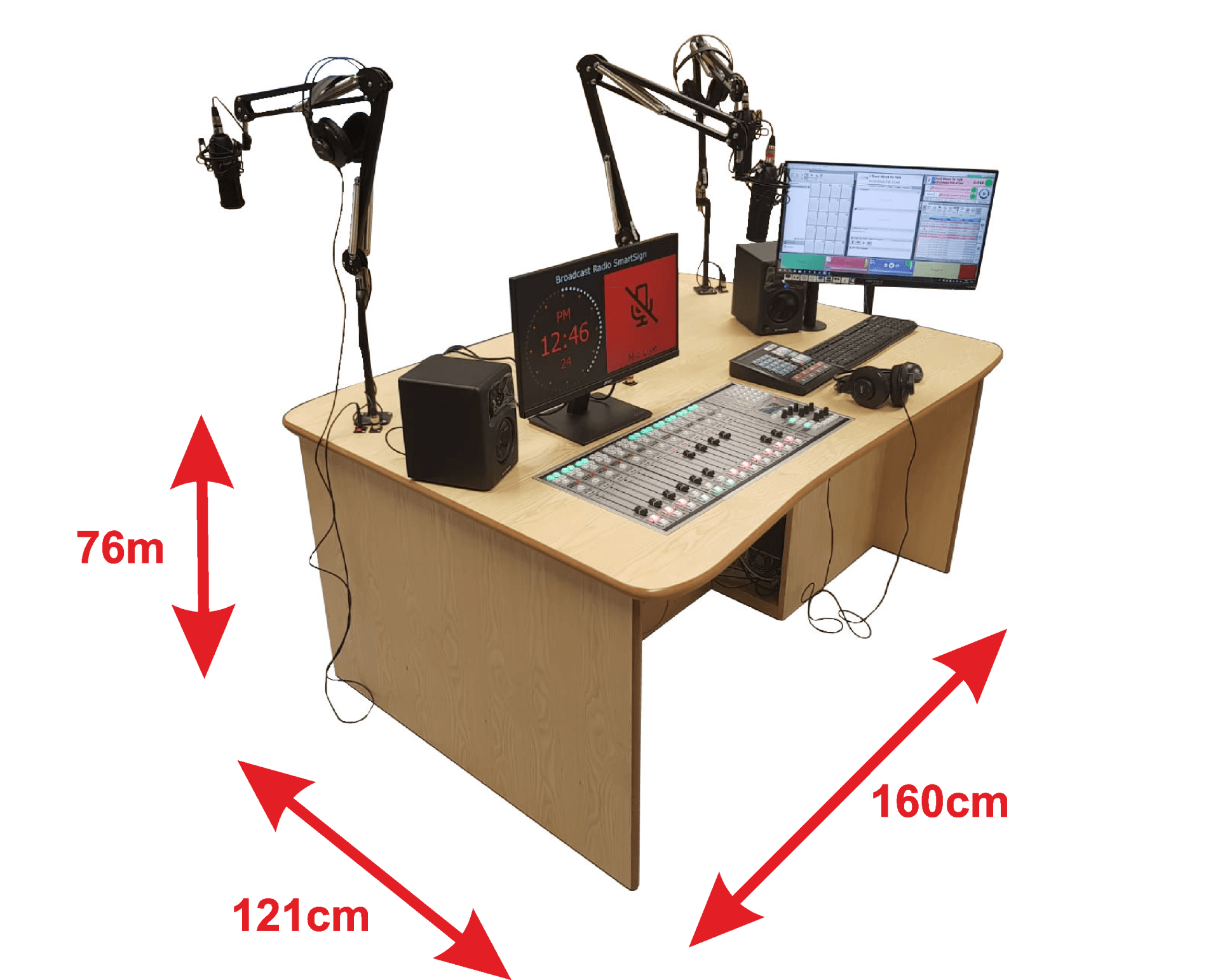

Package Dimensions
UR7 Digital Deluxe Studio
With the UR7, we wanted to create a great studio combining cutting edge technology with premium materials and the latest software tools to allow broadcasters to create many different types of radio.
We also wanted a studio that packed a lot of great features into a compact footprint to allow the UR7 to be deployed in the same space a couple of standard office desks. The result is, we think, the best studio package we have ever offered!
Gallery
